Thickness 3.2mm, 4mm etc.
Size 1830*1220mm, 2440*1830mm etc.

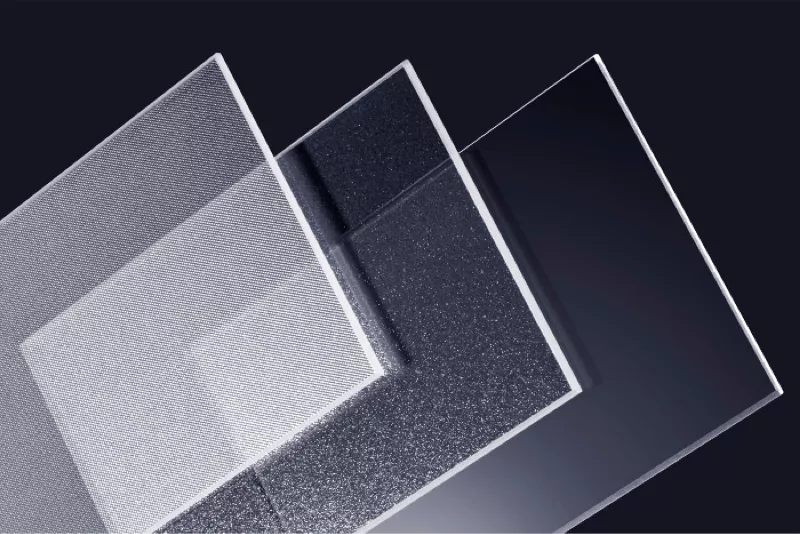

Glass Description
☆ Ultra clear float solar glass is one kind of low iron glass, which is also called photovoltaic glass and energy saving glass which mainly used on solar panel because of its super light transmittance rate.

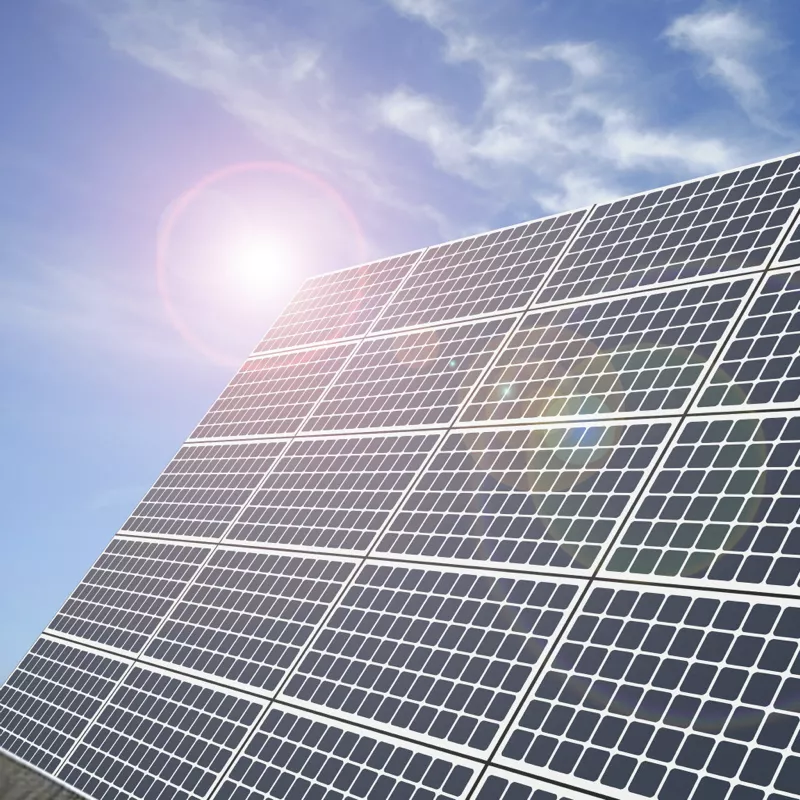

☆ Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, we are using high-transmittance and low reflection glass for its panel. This high strength
glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
Features
☆ Solar Direct Transmission: ≥91.6%
☆ Light Transmittance: ≥92.4%
☆ Iron Content (Fe2O3): ≤120ppm
☆ Heat Conductivity (20℃): 1.06w/m•K.
☆ Overall Bow: ≤0.2%.
☆ Density: 2.5g/cm3
☆ Young’s Modulus: 73GPa
☆ Tensile Strength: 42MPa
☆ Thermal Expansion Coefficient: 9.03*10-6
☆ Softening Point: 720℃
☆ Annealing Point: 570℃
☆ Strain Pont: 500℃.
Advantages
– Solar Control: Solar glass is an ideal choice for maximizing natural light while reflecting a significant portion of solar radiation, helping to keep indoor spaces bright and cool. In addition to various aesthetic options, solar control glass can offer different levels of energy performance and light transmission.
– Thermal Insulation: Utilized in double or triple glazing, they aid in reducing energy costs associated with indoor heating systems.
– Energy Efficiency: Solar control glass helps limit interior overheating, thus reducing the need for air conditioning, thereby enhancing the building’s energy efficiency.
– Glare Reduction: Solar control glass helps to mitigate sun glare and enhance visual comfort for building occupants, especially in cases where glass curtain walls are directly exposed to sunlight and windows are tall.
Applications
– Curtain Walls
– Roofing and Skylights
– Large Glass Windows
