GLASS DESCRIPTION
Two or three layers of clear float glass “sandwiched” together with clear or colored PVB interlayer, laminated glass is the one glass that reconciles the aesthetic benefits of glass with a genuine concern for safety;
offering superior protection against glass breakage, as well as harmful solar rays and hazardous noise levels.
Due to the adhesive properties of the PVB, Rider takes careful precautions to prevent unwanted particles from attaching to the PVB during the adhesion process.

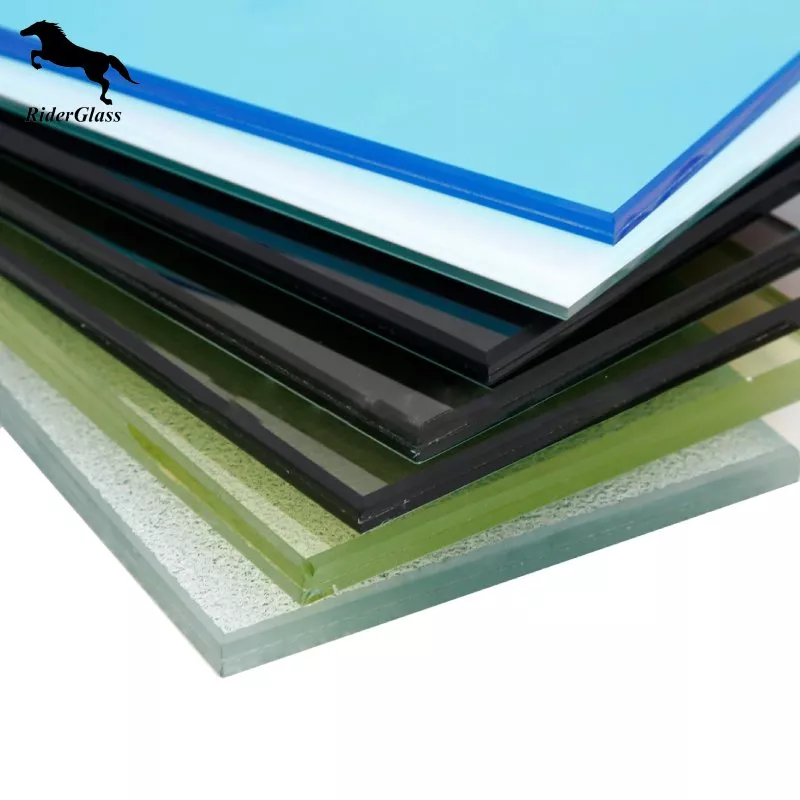

GLASS THICKNESS DETAILS
3+0.38pvb+3mm; 4+0.38pvb+3mm;
5+0.38pvb+5mm; 6+0.38pvb+6mm;
3+0.76pvb+4mm; 4+0.76pvb+4mm;
5+0.76pvb+5mm; 6+0.76pvb+6mm etc.

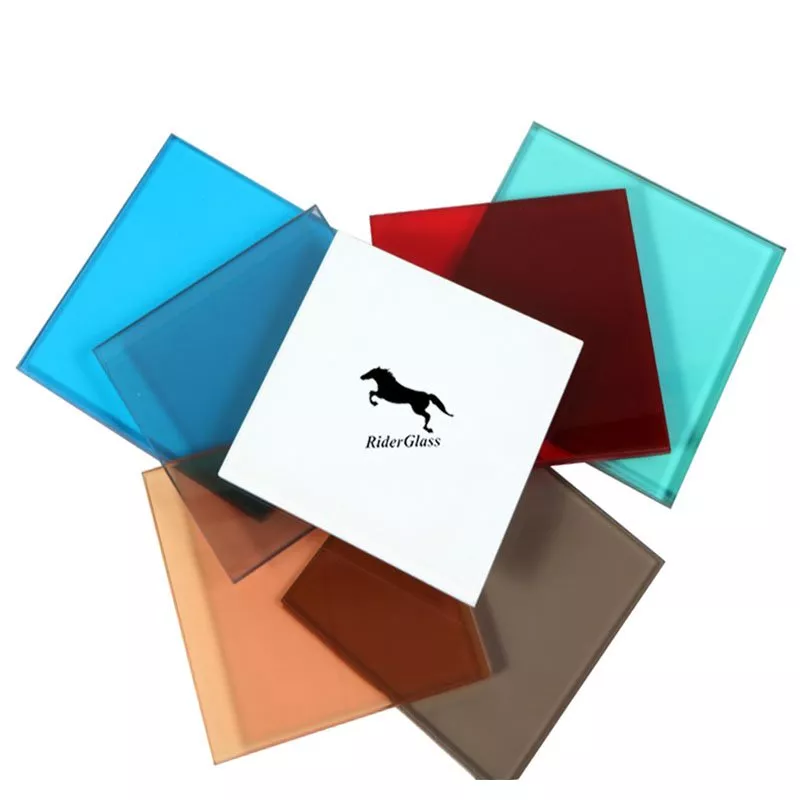

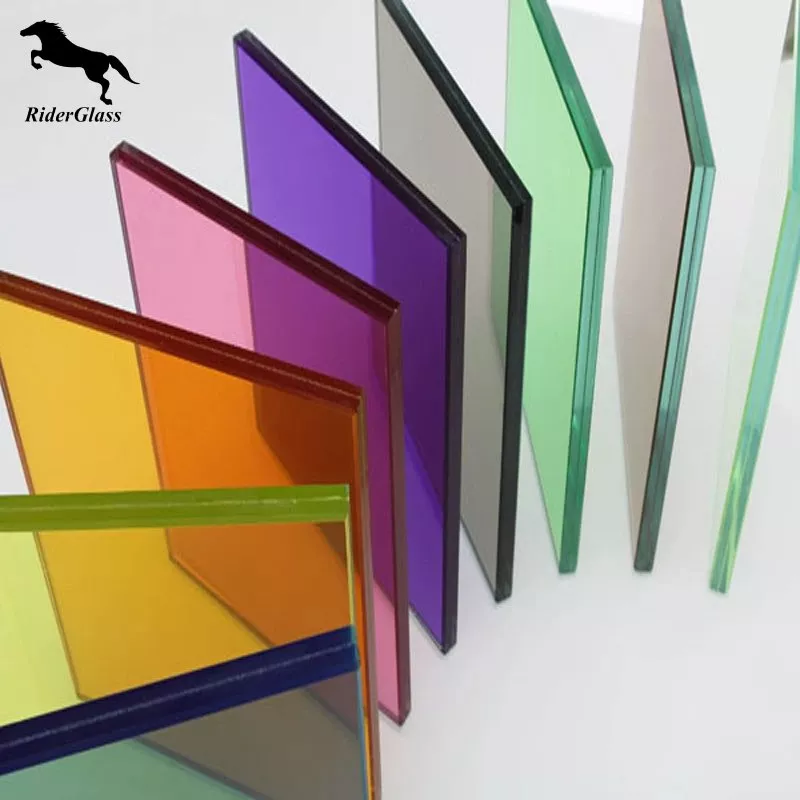

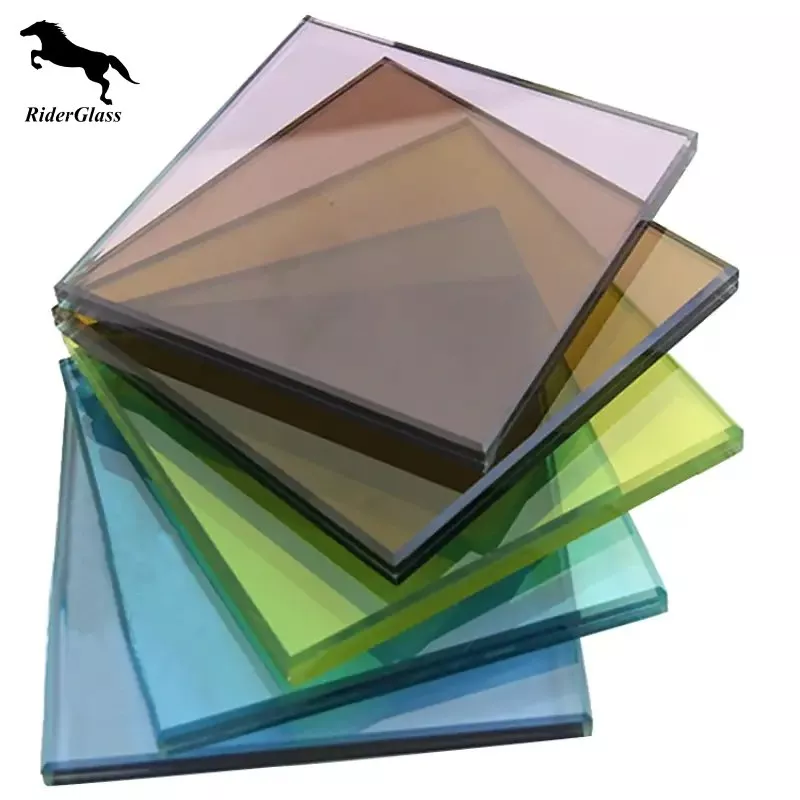

PVB COLORS
– Milky White
– French Green
– Light Blue
– Bronze
– Light Grey
– Dark Grey
– Ocean Blue etc.
PVB THICKNESS
0.38mm, 0.76mm, 1.14mm, 1.52mm etc.
HOT SIZE
1650*2140/2440, 1830*2440, 2000*2440, 3300*2140/2250/2440/2550, 3660*2140/2250/2440/2550mm etc.
MAX SIZE
3660*2550mm,other specifications and sizes can be customized according to customers’ requirements.
QUALITY CERTIFICATION
AS/NZS 2208:1996; EN 14449:2006; EN ISO 12543:012 etc.
BENEFITS
Holds together when shattered. The PVB interlayer keeps the glass bonded, even when broken, resulting in a characteristic spider web cracking pattern across the glass.
Cyclone resistant
Superior UV blockage
Excellent sound damping properties
Low visible distortion
APPLICATIONS
External use of windows, doors, shopfronts in offices, houses, shops etc.
Interior glass screens, partitions, balustrades etc.
Shop display windows, showcases, display shelves etc.
Furniture, table-tops, picture frames etc.
