Two or three layers of clear float glass “sandwiched” together with clear or colored PVB interlayer, laminated glass is the one glass that reconciles the aesthetic benefits of glass with a genuine concern for safety; offering superior protection against glass breakage, as well as harmful solar rays and hazardous noise levels.Due to the adhesive properties of the PVB, Rider takes careful precautions to prevent unwanted particles from attaching to the PVB during the adhesion process.

LAMINATED GLASS THICKNESS

Total thickness: 6.38-17.52mm

GLASS THICKNESS DETAILS

3+0.38pvb+3mm;  4+0.38pvb+3mm;
5+0.38pvb+5mm;  6+0.38pvb+6mm;
3+0.76pvb+4mm;  4+0.76pvb+4mm;
5+0.76pvb+5mm;  6+0.76pvb+6mm etc.

PVB THICKNESS

0.38mm, 0.76mm, 1.14mm, 1.52mm etc.

HOT SIZE

1650*2140/2440, 1830*2440, 2000*2440, 3300*2140/2250/2440/2550, 3660*2140/2250/2440/2550mm etc.

MAX SIZE

3660*2550mm,other specifications and sizes can be customized according to customers’ requirements.

BENEFITS

Holds together when shattered. The PVB interlayer keeps the glass bonded, even when broken, resulting in a characteristic spider web cracking pattern across the glass.
Cyclone resistant
Superior UV blockage
Excellent sound damping properties
Low visible distortion

QUALITY CERTIFICATION

AS/NZS 2208:1996; EN 14449:2006; EN ISO 12543:012 etc.

APPLICATIONS

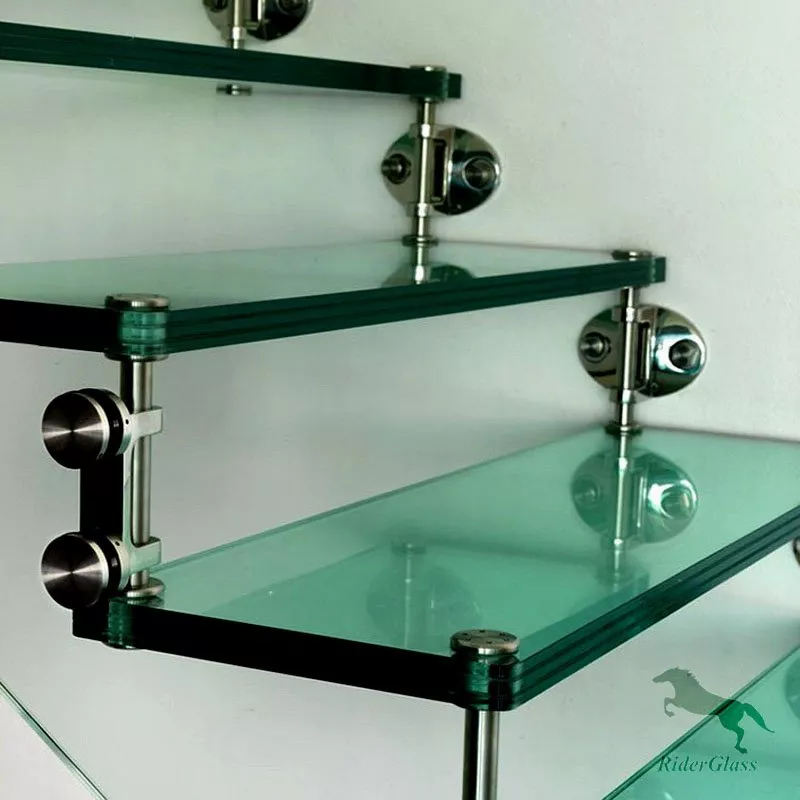

Rider Tempered Laminated glass is widely used in our daily life, such as bathroom doors, glass shower, glass balustrade, glass staircase, glass railing, glass fence, glass partition,glass doors and windows of various buildings, tea table tops and so on.
